Yamaha SB1J SILENT Brass™ System for Tuba

by Yamaha
Original price £553.00 - Original price £553.00
Original price
£553.00 - £553.00
Current price £553.00

Practice through headphones with Yamaha's next generation SILENT Brass™ system. Play where and when you want without disturbing friends and family!

The SILENT Brass™ SB1J system for Tuba consists of a PM1X Pickup Mute™, and the STJ Personal Studio™, which features Yamaha’s exclusive Brass Resonance Modelling™

Used together, the two deliver the natural acoustic tone you hear when playing without a mute, making it feel as though you are playing mute free.

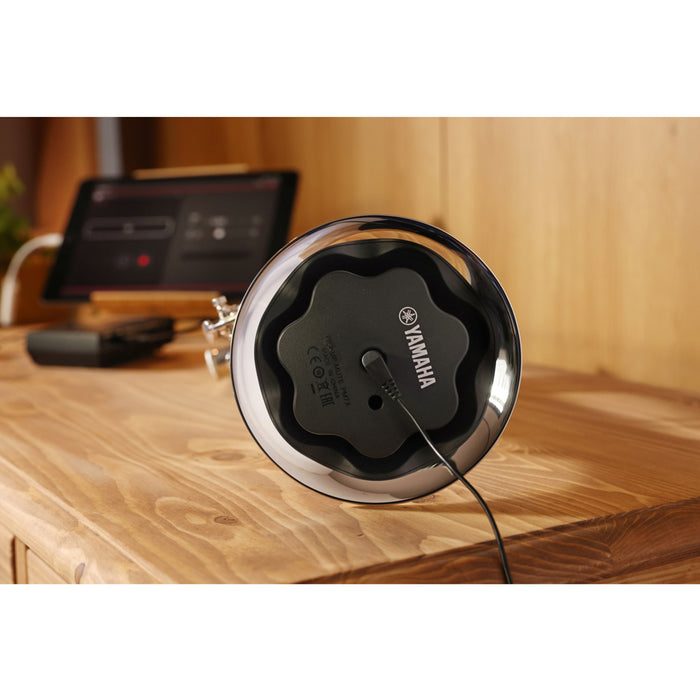

Silent Brass Pickup Mute

The Pickup Mute™ combines a high-performance mute with an internal microphone to pick up sound. Significantly smaller and lighter than previous versions, the mute offers superior muting performance, delivers excellent intonation over a wide pitch range, and natural playability.

Please note that the Pickup Mute may not fit some instruments with significantly different bell shapes or bell diameters. Please check before purchasing.

Brass Resonance Modelling

The Silent Brass Personal Studio  module features Yamaha's unique Brass Resonance Modelling  technology, which recreates the sound of non-muted brass instruments to correct your instrument’s tone when the Silent Brass Pickup Mute is in place. The resulting sound is so realistic, it’s virtually indistinguishable from the un-muted tone.

Pickup Mute™ Specifications

  • Model: PM1X (for Tuba)
  • Dimensions (Diameter x Length): 335 x 695mm
  • Weight: 1800g
  • Internal Microphone: Electric condenser microphone
  • Pickup Output Jack: Mini phone jack
  • Nominal Level: -25dB~-35dB
  • Brass Resonance Modelling™: Version 2.0

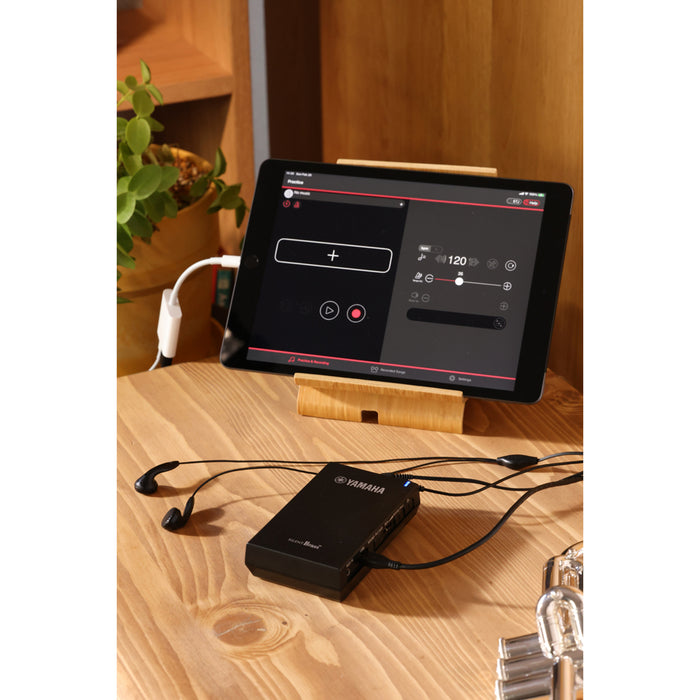

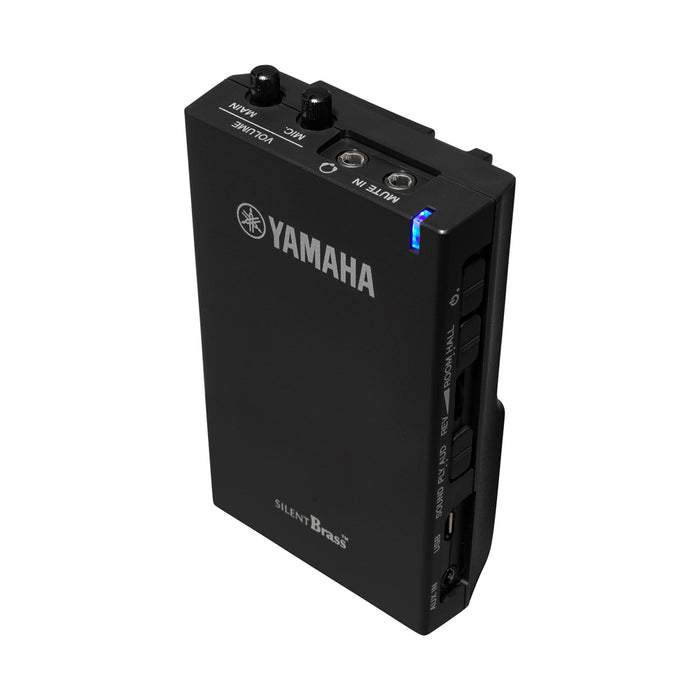

Personal Studio™ Specifications

  • Model: STJ
  • Dimensions (W x D x H): 70.2 x 30 x 121.3mm
  • Weight: 112g without batteries
  • Jacks and Terminals: MUTE IN, AUX IN, PHONES (Earphones with mic. available), USB (micro USB type-B)
  • Control: VOL. (main/mic), Reverb type, Reverb depth, Sound (Player/Audience), Power ON/OFF
  • Brass Resonance Modelling™: Version 2.0 (It behaves correctly only when compatible Pickup Mute™ is connected to Personal Studio™)
  • Power Supply: AA alkaline or nickel-metal hydride batteries x 2 (3V DC)

Included Accessories

  • Cable
  • Stereo earphones with mic
  • USB cable (micro USB type-B to USB type A)
  • Owners manual
